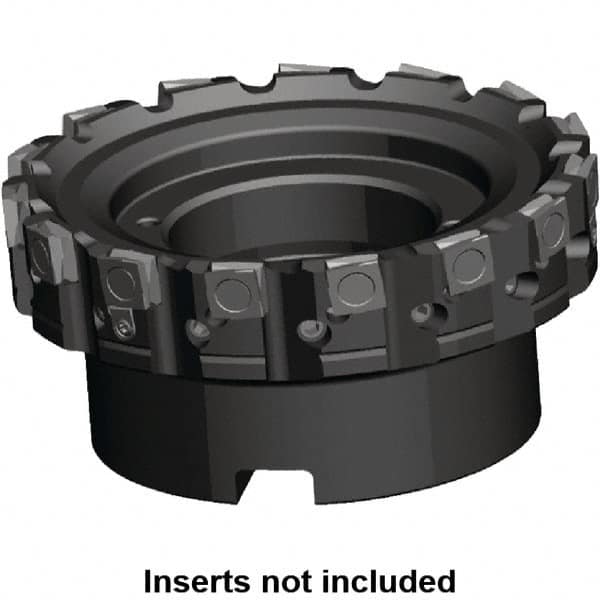

Kennametal - 8 Inserts, 63mm Cut Diam, 22mm Arbor Diam, 6mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, SPHX 1205... Insert Compatibility, Series Fix-Perfect
Item #: 46863353
Brand: Kennametal
Model #: 1501653
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | SPHX 1205... |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 6.00 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Clamp |
| Cutter Style | CFP |
| Number of Flutes | 8 |
| Hub Diameter (mm) | 51.00 |
| Hub Diameter (Decimal Inch) | 2.0079 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 5000 |
| Complete Insert Compatibility | SPHX 1205PC.R.. |
