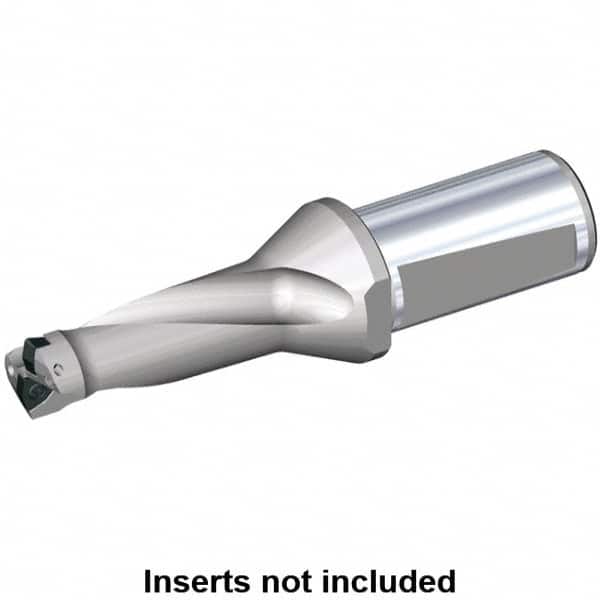

Kennametal - 59.1mm Max Drill Depth, 2.5xD, 24mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Whistle Notch Shank
Item #: 46863627
Brand: Kennametal
Model #: 1541846
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (mm) | 24.00 |
| Drill Diameter (Decimal Inch) | 0.9449 |
| Maximum Drill Depth (mm) | 59.10 |
| Maximum Drill Depth (Decimal Inch) | 2.3268 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Diameter (mm) | 25.00 |
| Overall Length/Projection (mm) | 158.00 |
| Overall Length/Projection (Decimal Inch) | 6.2205 |
| Insert Compatibility (Outside or Peripheral) | DFT 0302.. |
| Insert Compatibility | DFT 0302.. |
| Flute Length (mm) | 72.00 |
| Flute Length (Decimal Inch) | 2.8346 |
| Body Length (Decimal Inch) | 3.5433 |
| Body Length (mm) | 90.00 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
| Collar Diameter (mm) | 49.90 |
| Collar Diameter (Decimal Inch) | 1.9646 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | R1/4 |
