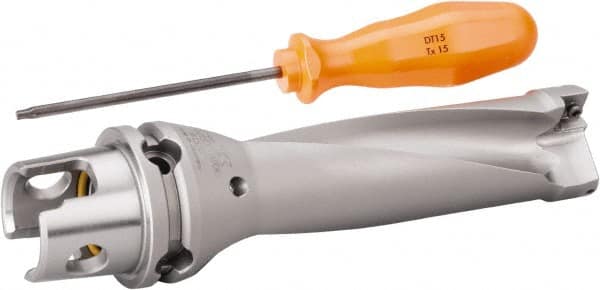

Kennametal - 76.2mm Max Drill Depth, 3xD, 25.4mm Diam, Indexable Insert Drill - 2 Inserts, 50mm Shank Diam, KM50 Modular Connection Shank
Item #: 46864849
Brand: Kennametal
Model #: 4122634
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 25.40 |
| Drill Diameter (Decimal Inch) | 1.0000 |
| Maximum Drill Depth (mm) | 76.20 |
| Maximum Drill Depth (Decimal Inch) | 3.0000 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Modular Connection Size | KM50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.0400 |
| Maximum Drill Diameter (mm) | 26.42 |
| Overall Length/Projection (mm) | 120.65 |
| Overall Length/Projection (Decimal Inch) | 4.7500 |
| Insert Compatibility (Outside or Peripheral) | SPGX 0703.. |
| Insert Compatibility | DFT 05T3.. |
| Flute Length (mm) | 95.00 |
| Flute Length (Decimal Inch) | 3.7402 |
| Body Length (Decimal Inch) | 4.7500 |
| Body Length (mm) | 120.65 |
| Shank Length (mm) | 31.95 |
| Shank Length (Decimal Inch) | 1.2579 |
| Series | Drill-Fix |
