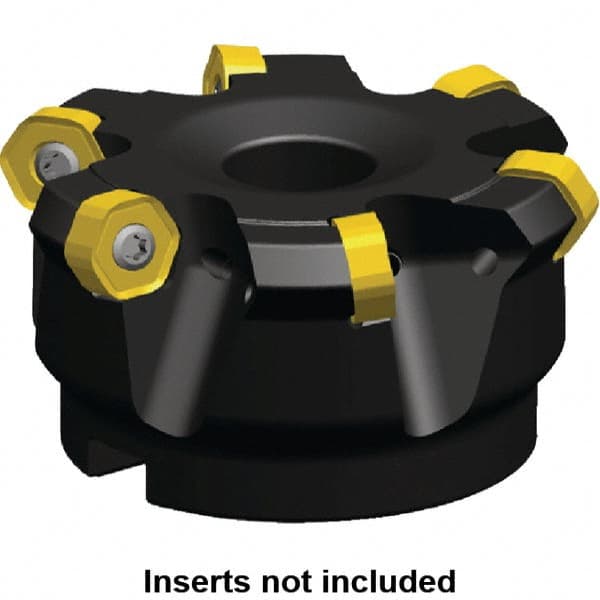

Kennametal - 106.1mm Cut Diam, 32mm Arbor Hole, 4.4mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 9 Inserts, HNGJ 0604... Insert, Right Hand Cut, 9 Flutes, Through Coolant, Series Dodeka Mini
Item #: 46865101
Brand: Kennametal
Model #: 4147721
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 106.10 |
| Cutting Diameter (Decimal Inch) | 4.1770 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | HNGJ 0604... |
| Series | Dodeka Mini |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 4.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.1732 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | KSHR |
| Number of Flutes | 9 |
| Hub Diameter (Decimal Inch) | 3.1496 |
| Hub Diameter (mm) | 80.00 |
| Maximum Body Diameter (Decimal Inch) | 4.0780 |
| Maximum RPM | 6300 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNGJ 0604ANENLD |
