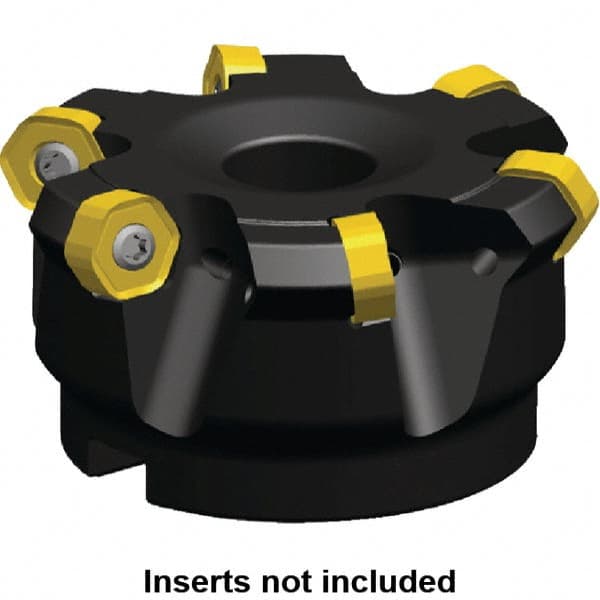

Kennametal - 86.16mm Cut Diam, 27mm Arbor Hole, 4.4mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 5 Inserts, HNGJ 0604... Insert, Right Hand Cut, 5 Flutes, Through Coolant, Series Dodeka Mini
Item #: 46865135
Brand: Kennametal
Model #: 4147718
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 86.16 |
| Cutting Diameter (Decimal Inch) | 3.3920 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | HNGJ 0604... |
| Series | Dodeka Mini |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 4.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.1732 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | KSHR |
| Number of Flutes | 5 |
| Hub Diameter (Decimal Inch) | 2.3622 |
| Hub Diameter (mm) | 60.00 |
| Maximum Body Diameter (Decimal Inch) | 3.2900 |
| Maximum RPM | 7900 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNGJ 0604ANENLD |
