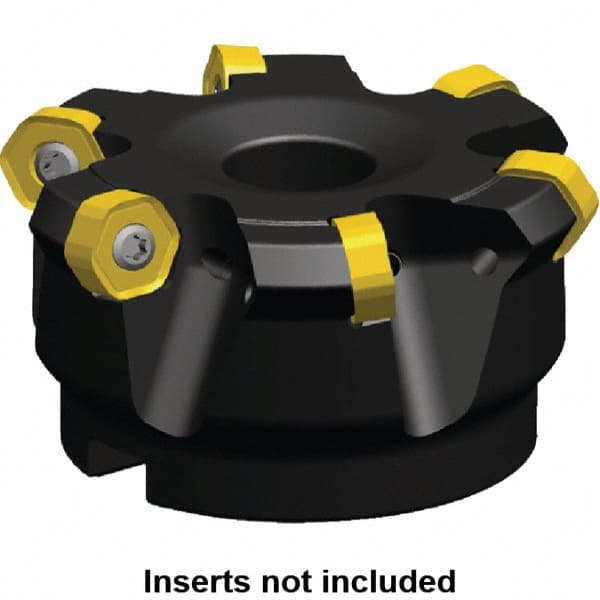

Kennametal - 3" Cut Diam, 1" Arbor Hole, 4.42mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 5 Inserts, HNGJ 0604... Insert, Right Hand Cut, 5 Flutes, Through Coolant, Series Dodeka Mini HD
Item #: 46865200
Brand: Kennametal
Model #: 4136395
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (mm) | 82.31 |
| Cutting Diameter (Decimal Inch) | 3.2406 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 1.7500 |
| Overall Height (mm) | 44.45 |
| Insert Compatibility | HNGJ 0604... |
| Series | Dodeka Mini HD |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 4.42 |
| Maximum Depth of Cut (Decimal Inch) | 0.1740 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | KSHRHD |
| Number of Flutes | 5 |
| Hub Diameter (Decimal Inch) | 2.1890 |
| Hub Diameter (mm) | 55.60 |
| Maximum Body Diameter (Decimal Inch) | 3.1390 |
| Maximum RPM | 8300 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNGJ 0604ANENLD |
