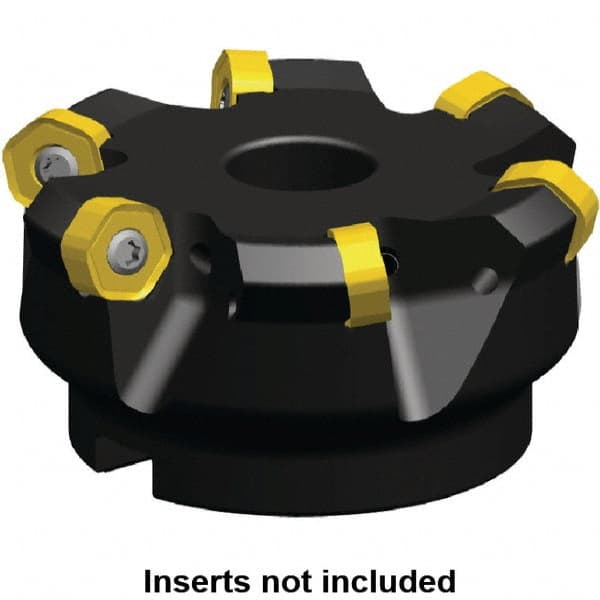

Kennametal - 133.15mm Cut Diam, 40mm Arbor Hole, 3.2mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 8 Inserts, HNGJ 0604... Insert, Right Hand Cut, 8 Flutes, Through Coolant, Series Dodeka Mini
Item #: 46865333
Brand: Kennametal
Model #: 4126407
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 133.15 |
| Cutting Diameter (Decimal Inch) | 5.2420 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | HNGJ 0604... |
| Series | Dodeka Mini |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 3.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.1260 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | KSHR |
| Number of Flutes | 8 |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Hub Diameter (mm) | 90.00 |
| Maximum Body Diameter (Decimal Inch) | 5.1450 |
| Maximum RPM | 5050 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNGJ 0604ANENLD |
