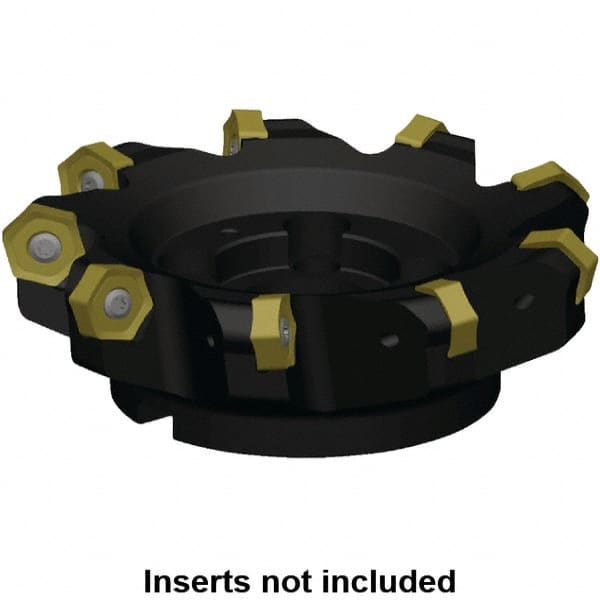

Kennametal - 177.32mm Cut Diam, 40mm Arbor Hole, 8mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 9 Inserts, HNPJ 1307... Insert, Right Hand Cut, 9 Flutes, Through Coolant, Series Dodeka Max
Item #: 46865523
Brand: Kennametal
Model #: 4059485
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 177.32 |
| Cutting Diameter (Decimal Inch) | 6.9812 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | HNPJ 1307... |
| Series | Dodeka Max |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | KSHR |
| Number of Flutes | 9 |
| Hub Diameter (Decimal Inch) | 4.3307 |
| Hub Diameter (mm) | 110.00 |
| Maximum Body Diameter (Decimal Inch) | 6.7720 |
| Maximum RPM | 3900 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNPJ 130720ANSNGD |
