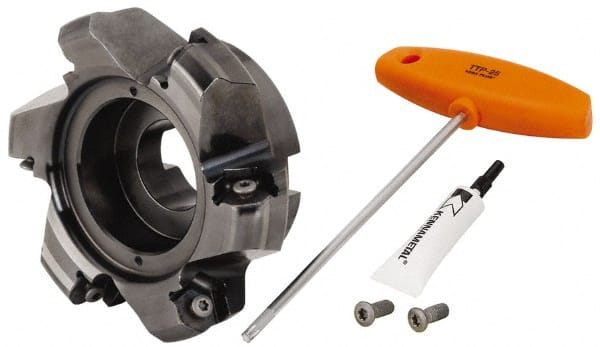

Kennametal - 5" Cut Diam, 1-1/2" Arbor Hole, 8mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 6 Inserts, HNPJ 1307... Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series Dodeka Max
Item #: 46865549
Brand: Kennametal
Model #: 4057580
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (mm) | 144.32 |
| Cutting Diameter (Decimal Inch) | 5.6820 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.3750 |
| Overall Height (mm) | 60.33 |
| Insert Compatibility | HNPJ 1307... |
| Series | Dodeka Max |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | KSHR |
| Number of Flutes | 6 |
| Hub Diameter (Decimal Inch) | 3.8120 |
| Hub Diameter (mm) | 96.82 |
| Maximum Body Diameter (Decimal Inch) | 5.4710 |
| Maximum RPM | 5000 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNPJ 130720ANSNGD |
