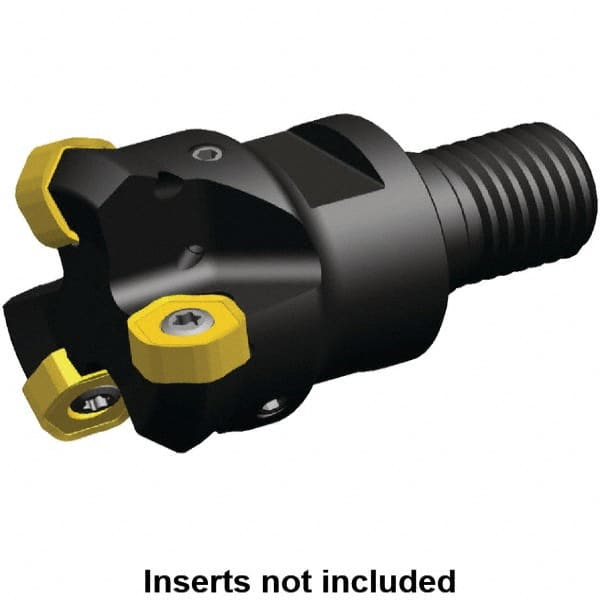

Kennametal - 45° Lead Angle, 39.93mm Max Cut Diam, 1-1/4" Min Cut Diam, 3.23mm Max Depth of Cut, Indexable Chamfer & Angle End Mill - 4 Inserts, HNGJ 0604ANENLD Insert Style, 62.61mm OAL, Through Coolant, Modular Connection
Item #: 46865622
Brand: Kennametal
Model #: 4130385
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Inch) | 1-1/4 |
| Minimum Cutting Diameter (Decimal Inch) | 1.2500 |
| Minimum Cutting Diameter (mm) | 31.75 |
| Maximum Cutting Diameter (mm) | 39.93 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5720 |
| Shank Type | Modular Connection |
| Shank Diameter (Decimal Inch) | 0.6690 |
| Lead Angle | 45 |
| Overall Length (mm) | 62.61 |
| Overall Length (Decimal Inch) | 2.4650 |
| Insert Style | HNGJ 0604ANENLD |
| Series | Dodeka Mini |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.1270 |
| Maximum Depth of Cut (mm) | 3.23 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Toolholder Style | KSHR |
| Number of Flutes | 4 |
| Head Length (mm) | 38.10 |
| Head Length (Decimal Inch) | 1.5000 |
| Modular Connection Size | M16 |
| Shank Length (mm) | 24.50 |
| Shank Length (Decimal Inch) | 0.9646 |
| Maximum RPM | 17600 |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
