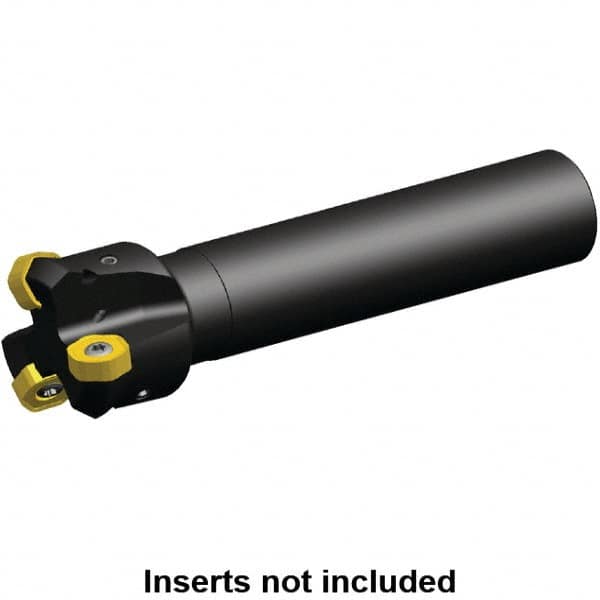

Kennametal - 45° Lead Angle, 40.17mm Max Cut Diam, 32mm Min Cut Diam, 3.2mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, HNGJ 0604ANENLD Insert Style, 130mm Overall Length, Through Coolant, Straight Shank
Item #: 46865671
Brand: Kennametal
Model #: 4126383
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.2600 |
| Minimum Cutting Diameter (mm) | 32.00 |
| Maximum Cutting Diameter (mm) | 40.17 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5815 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Lead Angle | 45 |
| Overall Length (mm) | 130.00 |
| Overall Length (Decimal Inch) | 5.1180 |
| Insert Style | HNGJ 0604ANENLD |
| Series | Dodeka Mini |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.1260 |
| Maximum Depth of Cut (mm) | 3.20 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Toolholder Style | KSHR |
| Number of Flutes | 3 |
| Weldon Flat | No |
| Shank Length (mm) | 90.00 |
| Shank Length (Decimal Inch) | 3.5433 |
| Maximum RPM | 17600 |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
