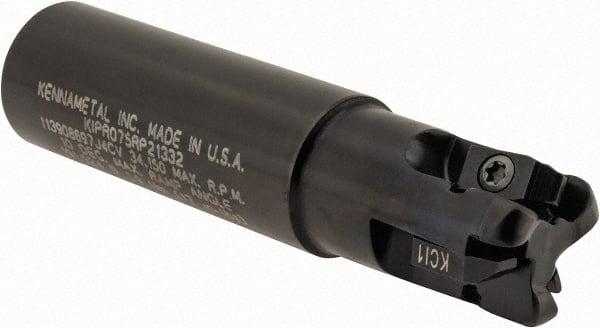

Kennametal - 3/4" Cutting Diam, 3/4" Shank Diam, 3/4" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, RP.. 2150.. Insert, KIPR Toolholder, Through Coolant
Item #: 46866406
Brand: Kennametal
Model #: 3759534
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 19.05 |
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (mm) | 3.18 |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Cutter Inserts | 3 |
| Insert Style | RP.. 2150.. |
| Toolholder Style | KIPR |
| Series | KIPR |
| Overall Length (mm) | 81.28 |
| Overall Length (Decimal Inch) | 3.2000 |
| Insert Holding Method | Clamp |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 12.70 |
| Head Length (mm) | 30.28 |
| Head Length (Decimal Inch) | 1.1921 |
| Shank Length (mm) | 51.00 |
| Shank Length (Decimal Inch) | 2.0079 |
| Maximum RPM | 34150 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
