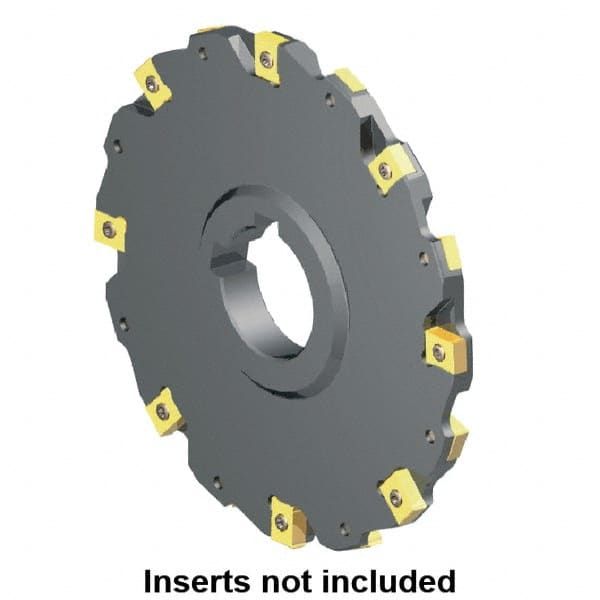

Kennametal - Arbor Hole Connection, 0.4724" Cutting Width, 1.811" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 5 Tooth Indexable Slotting Cutter - 90° LN Toolholder, LNE 1255... Insert
Item #: 46866547
Brand: Kennametal
Model #: 1130608
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 12.00 |
| Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 46.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.8110 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 5 |
| Toolholder Style | 90 LN |
| Series | LN |
| Insert Style | LNE 1255... |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (Decimal Inch) | 0.5118 |
| Maximum Cutting Width (mm) | 13.00 |
| Hub Diameter (mm) | 63.00 |
| Hub Diameter (Decimal Inch) | 2.4803 |
| Cutter Body Width (mm) | 12.00 |
| Cutter Body Width (Decimal Inch) | 0.4724 |
