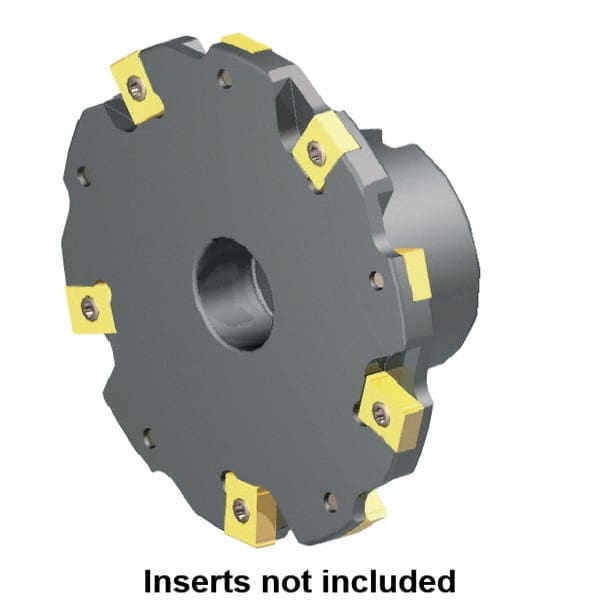

Kennametal - Shell Mount Connection, 0.3937" Cutting Width, 1.0236" Depth of Cut, 125mm Cutter Diam, 1.5748" Hole Diam, 6 Tooth Indexable Slotting Cutter - 90° LN Toolholder, LNE 1245... Insert
Item #: 46866570
Brand: Kennametal
Model #: 1130506
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 26.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0236 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 6 |
| Toolholder Style | 90 LN |
| Series | LN |
| Insert Style | LNE 1245... |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (Decimal Inch) | 0.4331 |
| Maximum Cutting Width (mm) | 11.00 |
| Hub Diameter (mm) | 70.00 |
| Hub Diameter (Decimal Inch) | 2.7559 |
