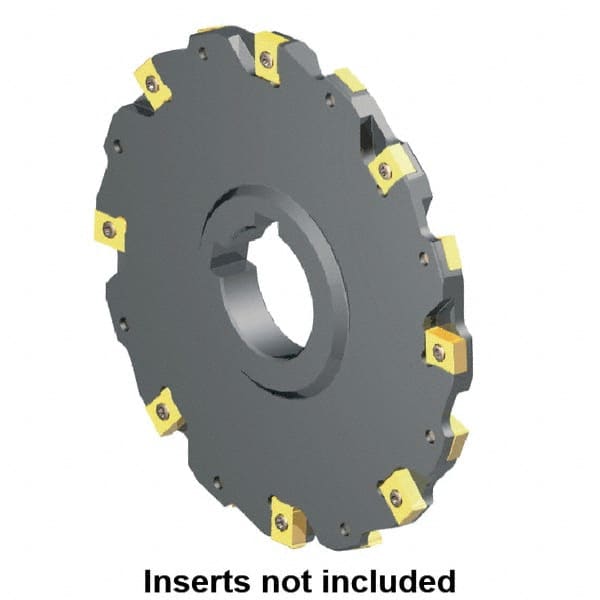

Kennametal - Arbor Hole Connection, 0.2362" Cutting Width, 0.8661" Depth of Cut, 100mm Cutter Diam, 1.2598" Hole Diam, 5 Tooth Indexable Slotting Cutter - 90° LN Toolholder, LNE 1235... Insert
Item #: 46866679
Brand: Kennametal
Model #: 1150508
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 22.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8661 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 5 |
| Toolholder Style | 90 LN |
| Series | LN |
| Insert Style | LNE 1235... |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Cutting Width (Decimal Inch) | 0.2756 |
| Maximum Cutting Width (mm) | 7.00 |
| Hub Diameter (mm) | 52.00 |
| Hub Diameter (Decimal Inch) | 2.0472 |
| Cutter Body Width (mm) | 12.00 |
| Cutter Body Width (Decimal Inch) | 0.4724 |
