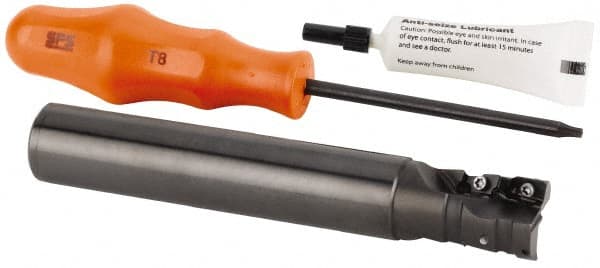

Kennametal - 20mm Cut Diam, 22mm Max Depth of Cut, 20mm Shank Diam, 85mm OAL, Indexable Square Shoulder Helical End Mill - GOMT 1003.., JOMT 1003.. Inserts, Weldon Shank, 0° Lead Angle, Series KDMR
Item #: 46866992
Brand: Kennametal
Model #: 3587059
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length/Projection (mm) | 85.00 |
| Overall Length/Projection (Decimal Inch) | 3.3465 |
| Lead Angle | 0 |
| Series | KDMR |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 22.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8661 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | KDMR |
| Number of Flutes | 2 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Weldon Flat | Yes |
| Insert Compatibility | GOMT 1003..; JOMT 1003.. |
| Shank Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 50.00 |
