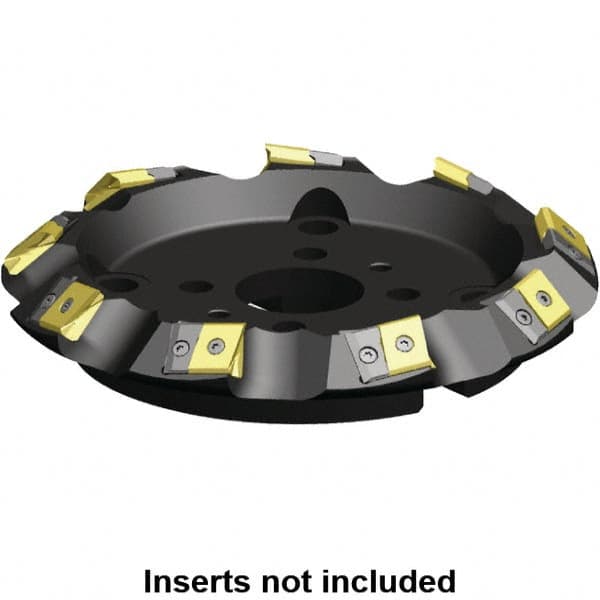

Kennametal - 12" Cut Diam, 2-1/2" Arbor Hole, 17.15mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 10 Inserts, LN.U 2410... Insert, Right Hand Cut, 10 Flutes, Series MEGA45
Item #: 46867222
Brand: Kennametal
Model #: 4105178
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 12 |
| Cutting Diameter (mm) | 340.16 |
| Cutting Diameter (Decimal Inch) | 13.3920 |
| Arbor Hole Diameter (mm) | 63.50 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 3.1496 |
| Overall Height (mm) | 80.00 |
| Insert Compatibility | LN.U 2410... |
| Series | MEGA45 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 17.15 |
| Maximum Depth of Cut (Decimal Inch) | 0.6750 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | MEGA |
| Number of Flutes | 10 |
| Hub Diameter (Decimal Inch) | 8.8583 |
| Hub Diameter (mm) | 225.00 |
| Maximum Body Diameter (Decimal Inch) | 13.5000 |
| Maximum RPM | 8080 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | LN.U 241012ANSR |
