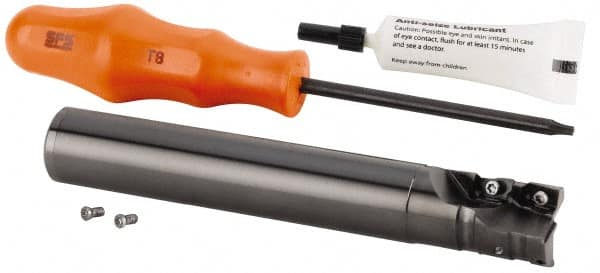

Kennametal - 1" Cut Diam, 27.99mm Max Depth of Cut, 1" Shank Diam, 139.34mm OAL, Indexable Square Shoulder Helical End Mill - GOMT 13T3.., JOMT 13T3.. Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series KDMR
Item #: 46867255
Brand: Kennametal
Model #: 3578443
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (mm) | 139.34 |
| Overall Length/Projection (Decimal Inch) | 5.4860 |
| Lead Angle | 0 |
| Series | KDMR |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 27.99 |
| Maximum Depth of Cut (Decimal Inch) | 1.1020 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | KDMR |
| Number of Flutes | 2 |
| Head Length (mm) | 39.34 |
| Head Length (Decimal Inch) | 1.5490 |
| Weldon Flat | No |
| Insert Compatibility | GOMT 13T3..; JOMT 13T3.. |
| Shank Length (Decimal Inch) | 3.9370 |
| Shank Length (mm) | 100.00 |
