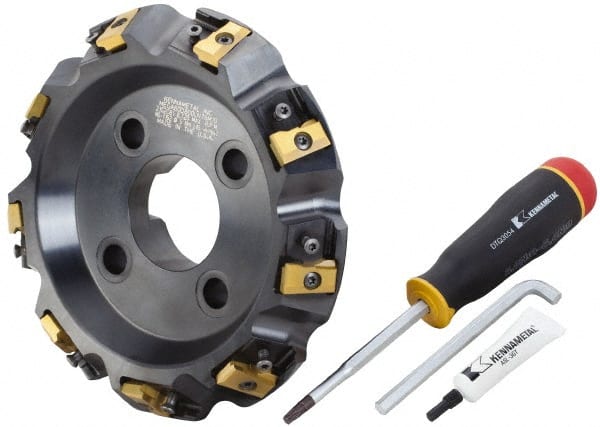

Kennametal - 8" Cut Diam, 2-1/2" Arbor Hole, 21.39mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 9 Inserts, LN.U 2210... Insert, Right Hand Cut, 9 Flutes, Series MEGA60
Item #: 46867354
Brand: Kennametal
Model #: 4147499
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 8 |
| Cutting Diameter (mm) | 225.83 |
| Cutting Diameter (Decimal Inch) | 8.8910 |
| Arbor Hole Diameter (mm) | 63.50 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 2.3750 |
| Overall Height (mm) | 60.33 |
| Insert Compatibility | LN.U 2210... |
| Series | MEGA60 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 21.39 |
| Maximum Depth of Cut (Decimal Inch) | 0.8420 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | MEGA |
| Number of Flutes | 9 |
| Hub Diameter (Decimal Inch) | 6.5000 |
| Hub Diameter (mm) | 165.10 |
| Maximum Body Diameter (Decimal Inch) | 8.9760 |
| Maximum RPM | 8720 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | LN.U 221012PNSR |
