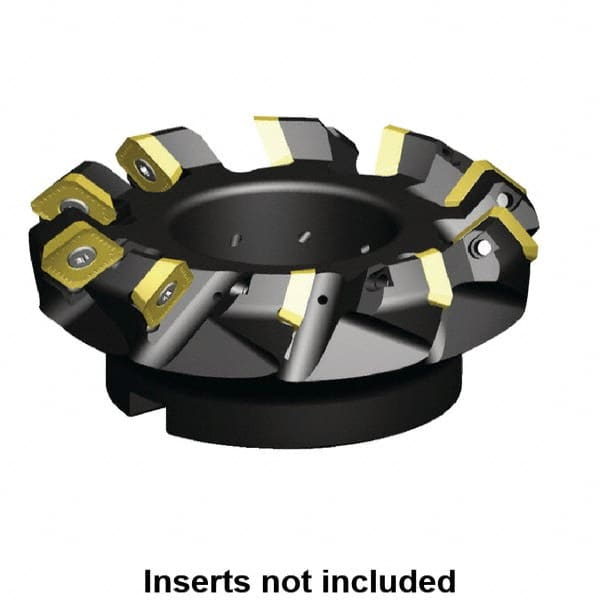

Kennametal - 10" Cut Diam, 2-1/2" Arbor Hole, 9.58mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 18 Inserts, SE.W 634... Insert, Right Hand Cut, 18 Flutes, Series KSSM
Item #: 46867503
Brand: Kennametal
Model #: 3300344
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 10 |
| Cutting Diameter (mm) | 274.68 |
| Cutting Diameter (Decimal Inch) | 10.8140 |
| Arbor Hole Diameter (mm) | 63.50 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 3.1496 |
| Overall Height (mm) | 80.00 |
| Insert Compatibility | SE.W 634... |
| Series | KSSM |
| Maximum Depth of Cut (mm) | 9.58 |
| Maximum Depth of Cut (Decimal Inch) | 0.3770 |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Screw |
| Cutter Style | KSSM |
| Number of Flutes | 18 |
| Hub Diameter (Decimal Inch) | 5.0000 |
| Hub Diameter (mm) | 127.00 |
| Maximum Body Diameter (Decimal Inch) | 10.6590 |
| Maximum RPM | 1700 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | SE.W 634AF.N9 |
