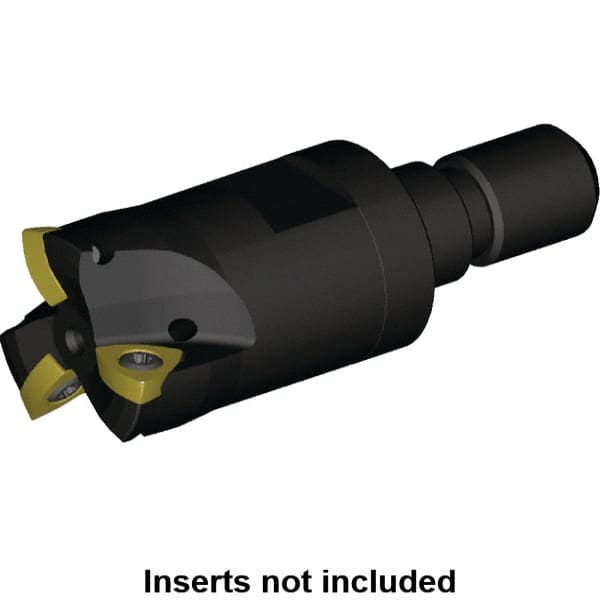

Kennametal - 20mm Cut Diam, 0.033" Max Depth, M10 Modular Connection Indexable High-Feed Helical End Mill - Screw Holding Method, WP..0302.. Insert, Through Coolant
Item #: 46867891
Brand: Kennametal
Model #: 3651443
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0330 |
| Shank Type | Modular Connection |
| Modular Connection Size | M10 |
| Number of Cutter Inserts | 3 |
| Insert Style | WP..0302.. |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Decimal Inch) | 0.5610 |
| Maximum RPM | 15900 |
| Through Coolant | Through Coolant |
| Maximum Cutting Diameter (Decimal Inch) | 0.7870 |
| Overall Length (Decimal Inch) | 1.1810 |
