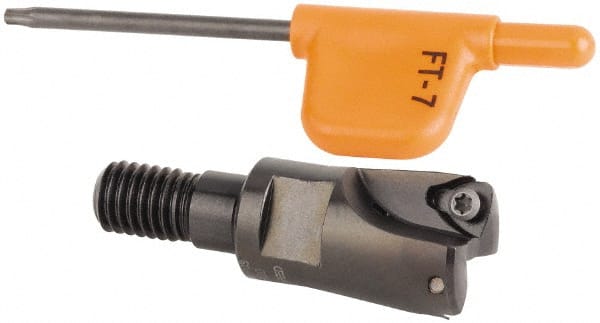

Kennametal - 16mm Cut Diam, 0.033" Max Depth, M8 Modular Connection Indexable High-Feed Helical End Mill - Screw Holding Method, WP..0302.. Insert, Through Coolant
Item #: 46867917
Brand: Kennametal
Model #: 3331550
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0330 |
| Shank Type | Modular Connection |
| Modular Connection Size | M8 |
| Number of Cutter Inserts | 2 |
| Insert Style | WP..0302.. |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Decimal Inch) | 0.4140 |
| Maximum RPM | 19900 |
| Through Coolant | Through Coolant |
| Maximum Cutting Diameter (Decimal Inch) | 0.6300 |
| Overall Length (Decimal Inch) | 0.9840 |
