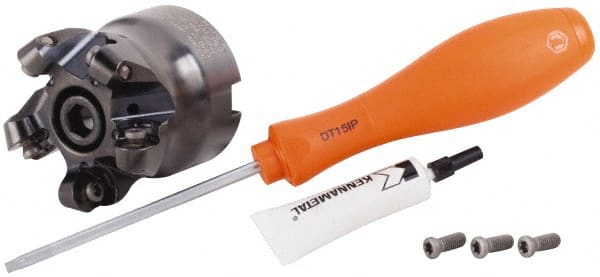

Kennametal - 42mm Cut Diam, 6mm Max Depth, 16mm Arbor Hole, 4 Inserts, RP.T 1204... Insert Style, Indexable Copy Face Mill - 37,800 Max RPM, 40mm High, Through Coolant, Series KSRM
Item #: 46868469
Brand: Kennametal
Model #: 4177163
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 42.00 |
| Cutting Diameter (Decimal Inch) | 1.6535 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6300 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Series | KSRM |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | RP.T 1204... |
| Through Coolant | Yes |
| Maximum RPM | 37800 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.4960 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RP.T 1204M0.. |
