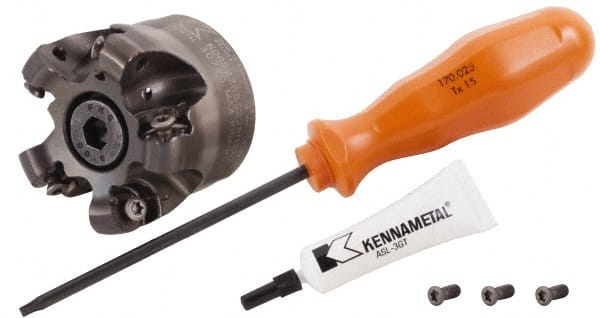

Kennametal - 63mm Cut Diam, 6mm Max Depth, 22mm Arbor Hole, 6 Inserts, RN.J 1204... Insert Style, Indexable Copy Face Mill - KDR Cutter Style, 40mm High, Through Coolant, Series Rodeka
Item #: 46868477
Brand: Kennametal
Model #: 5104424
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Series | Rodeka |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RN.J 1204... |
| Cutter Style | KDR |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.9300 |
| Complete Insert Compatibility | RN.J 1204M0.. |
