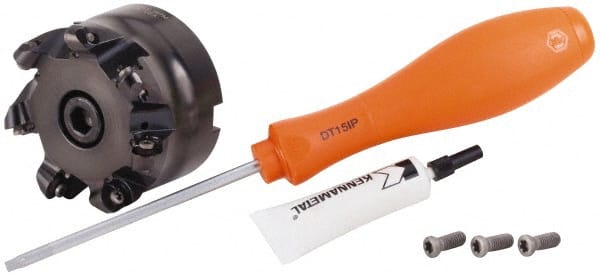

Kennametal - 76.2mm Cut Diam, 6.35mm Max Depth, 1" Arbor Hole, 7 Inserts, RP.T 43.. Insert Style, Indexable Copy Face Mill - KSRM Cutter Style, 24,400 Max RPM, 50mm High, Series KSRM
Item #: 46868501
Brand: Kennametal
Model #: 5175382
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 76.20 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | KSRM |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | RP.T 43.. |
| Cutter Style | KSRM |
| Maximum RPM | 24400 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.7500 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Complete Insert Compatibility | RP.T 43.. |
