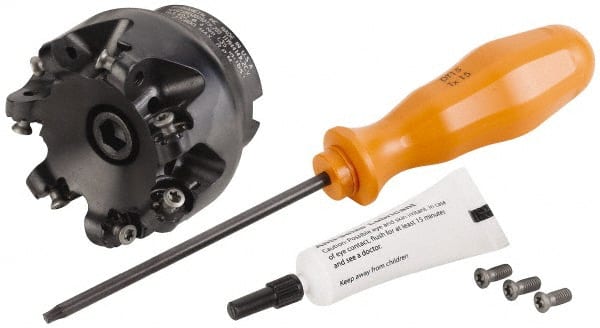

Kennametal - 63mm Cut Diam, 3mm Max Depth, 22mm Arbor Hole, 7 Inserts, RN.J 1204... Insert Style, Indexable Copy Face Mill - KDR Cutter Style, 27,910 Max RPM, 50mm High, Through Coolant, Series Rodeka
Item #: 46868568
Brand: Kennametal
Model #: 4147044
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | Rodeka |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | RN.J 1204... |
| Cutter Style | KDR |
| Through Coolant | Yes |
| Maximum RPM | 27910 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.9300 |
| Complete Insert Compatibility | RN.J 1204M0.. |
