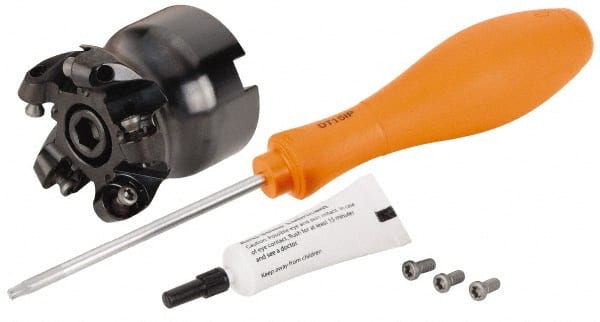

Kennametal - 50.8mm Cut Diam, 6mm Max Depth, 3/4" Arbor Hole, 5 Inserts, RP.T 1204... Insert Style, Indexable Copy Face Mill - BMD200 Cutter Style, 34,400 Max RPM, 2 High, Through Coolant, Series KSRM
Item #: 46868899
Brand: Kennametal
Model #: 4042715
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.80 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (mm) | 50.80 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | KSRM |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RP.T 1204... |
| Cutter Style | BMD200 |
| Through Coolant | Yes |
| Maximum RPM | 34400 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.7520 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RP.T 1204M0.. |
