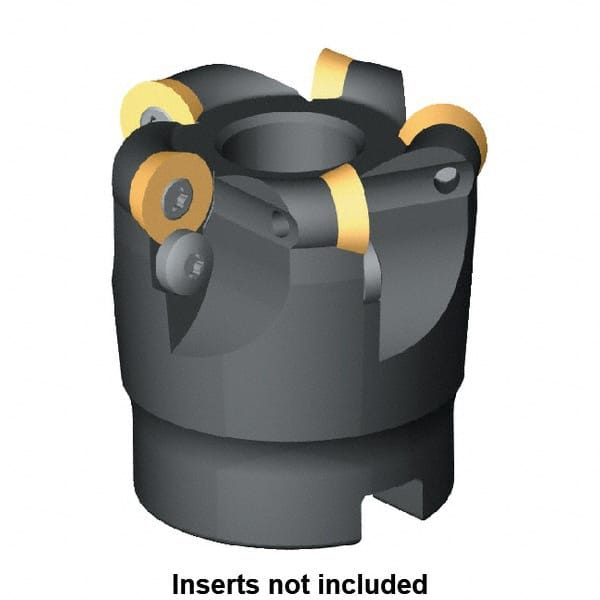

Kennametal - 40mm Cut Diam, 6mm Max Depth, 16mm Arbor Hole, 4 Inserts, RD.X 12T3... Insert Style, Indexable Copy Face Mill - 45mm High, Series KDM
Item #: 46869020
Brand: Kennametal
Model #: 3680971
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Overall Height (mm) | 45.00 |
| Overall Height (Decimal Inch) | 1.7717 |
| Series | KDM |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | RD.X 12T3... |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.2600 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RD.X 12T3MO.. |
