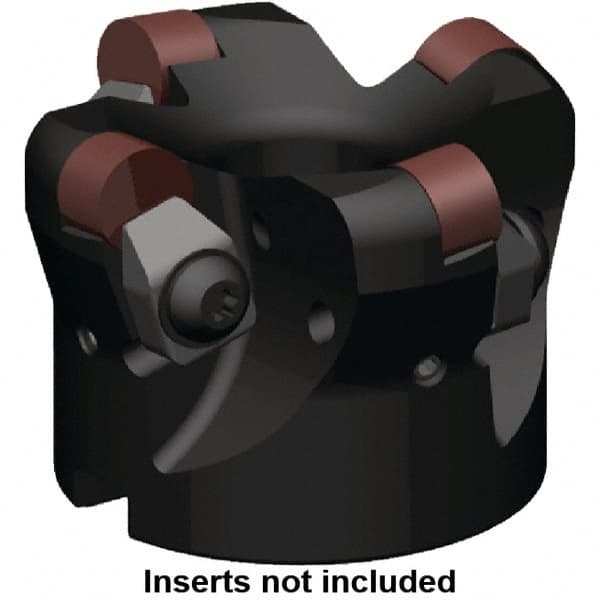

Kennametal - 100mm Cut Diam, 6mm Max Depth, 32mm Arbor Hole, 6 Inserts, RNGN 1207... Insert Style, Indexable Copy Face Mill - KSSR Cutter Style, 11,200 Max RPM, 50mm High, Series KSSR-RN
Item #: 46869061
Brand: Kennametal
Model #: 3101763
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | KSSR-RN |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RNGN 1207... |
| Cutter Style | KSSR |
| Maximum RPM | 11200 |
| Insert Holding Method | Clamp |
| Hub Diameter (Decimal Inch) | 3.3071 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RNGN 120700 |
