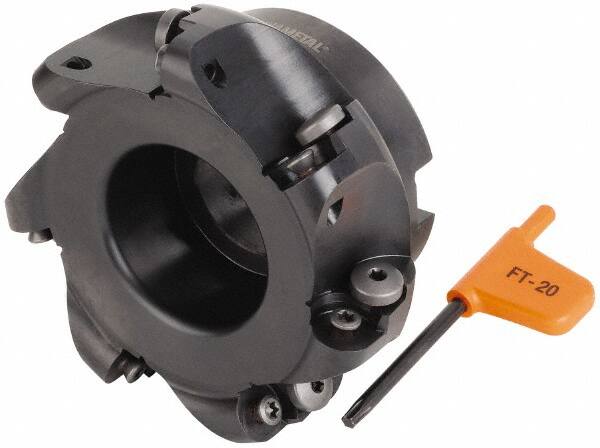

Kennametal - 100mm Cut Diam, 8mm Max Depth, 32mm Arbor Hole, 7 Inserts, RD.X 1604... Insert Style, Indexable Copy Face Mill - 55mm High, Series KDM
Item #: 46869152
Brand: Kennametal
Model #: 1888197
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Overall Height (mm) | 55.00 |
| Overall Height (Decimal Inch) | 2.1654 |
| Series | KDM |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | RD.X 1604... |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.3622 |
| Insert Inscribed Circle (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.6300 |
| Complete Insert Compatibility | RD.X 1604MO.. |
