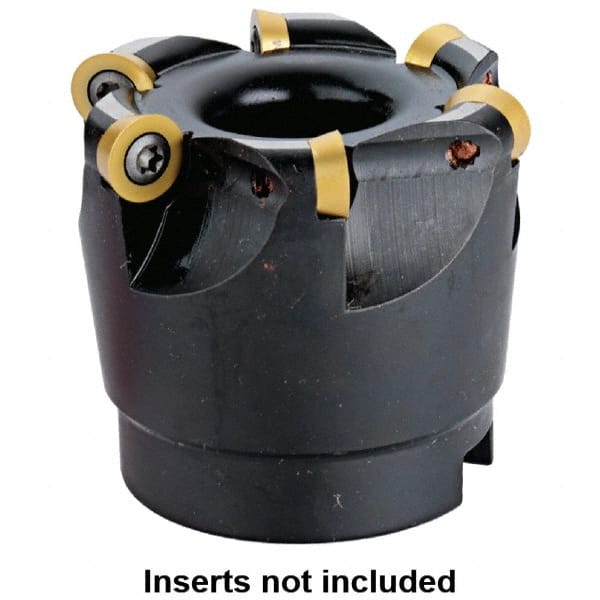

Kennametal - 52mm Cut Diam, 5mm Max Depth, 22mm Arbor Hole, 6 Inserts, RD.. 1003... Insert Style, Indexable Copy Face Mill - 50mm High, Series KDM
Item #: 46869178
Brand: Kennametal
Model #: 1888180
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 52.00 |
| Cutting Diameter (Decimal Inch) | 2.0472 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | KDM |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RD.. 1003... |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.6535 |
| Insert Inscribed Circle (mm) | 10.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.3937 |
| Complete Insert Compatibility | RD..1003MO.. |
