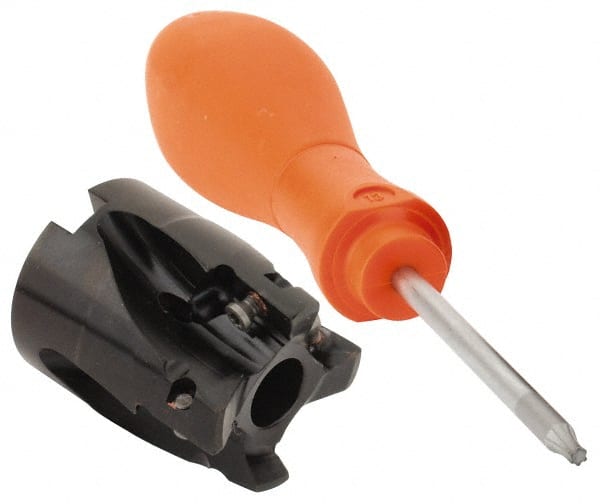

Kennametal - 4 Inserts, 1-1/4" Cut Diam, 1/2" Arbor Diam, 14.48mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, E.. 14.. Insert Compatibility, Through Coolant, Series Mill 1-14
Item #: 46869640
Brand: Kennametal
Model #: 2479509
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Arbor Hole Diameter (mm) | 12.70 |
| Arbor Hole Diameter (Inch) | 1/2 |
| Arbor Hole Diameter (Decimal Inch) | 0.5000 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | E.. 14.. |
| Series | Mill 1-14 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 14.48 |
| Maximum Depth of Cut (Decimal Inch) | 0.5700 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | Mill 1 |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 30.58 |
| Hub Diameter (Decimal Inch) | 1.2040 |
| Maximum Body Diameter (Decimal Inch) | 1.2190 |
| Maximum RPM | 33400 |
| Coolant Hole Diameter (Decimal Inch) | 0.1180 |
