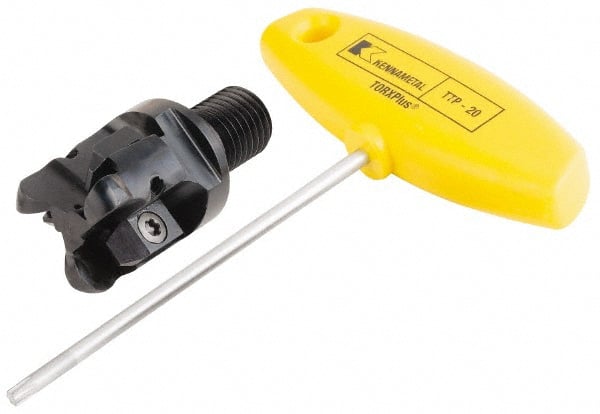

Kennametal - 31.75mm Cutting Diam, 1-1/4" Max Depth of Cut, Modular Connection Indexable Copy End Mill - 3 Inserts, RP.. 43.. Insert, KIPR Toolholder, Through Coolant
Item #: 46869756
Brand: Kennametal
Model #: 3760370
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Cutter Inserts | 3 |
| Insert Style | RP.. 43.. |
| Toolholder Style | KIPR |
| Series | KIPR |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1 |
| Overall Length (Decimal Inch) | 1.5000 |
| Insert Diameter (mm) | 12.70 |
| Insert Diameter (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Through Coolant | Through Coolant |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 19.05 |
| Head Length (mm) | 38.10 |
| Head Length (Inch) | 1-1/2 |
| Head Length (Decimal Inch) | 1.5000 |
| Maximum RPM | 21000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Modular Connection Size | M16 |
