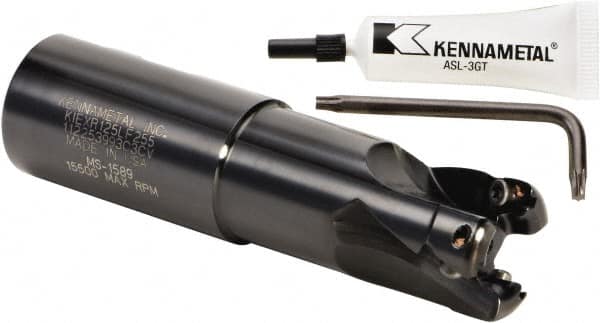

Kennametal - 1-1/4" Cut Diam, 0.404" Max Depth of Cut, 1-1/4" Shank Diam, 122.94mm OAL, Indexable Square Shoulder End Mill - LF.W 2.52.R Inserts, Weldon Shank, 0° Lead Angle, Series RPF
Item #: 46870168
Brand: Kennametal
Model #: 1025561
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (mm) | 122.94 |
| Overall Length/Projection (Decimal Inch) | 4.8400 |
| Lead Angle | 0 |
| Series | RPF |
| Maximum Depth of Cut (Decimal Inch) | 0.4040 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | KIEX |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 31.75 |
| Minimum Cutting Diameter (Inch) | 1-1/4 |
| Minimum Cutting Diameter (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 2.5600 |
| Weldon Flat | Yes |
| Insert Compatibility | LF.W 2.52.R |
| Shank Length (Decimal Inch) | 2.2800 |
| Shank Length (mm) | 57.91 |
| Maximum RPM | 15500 |
