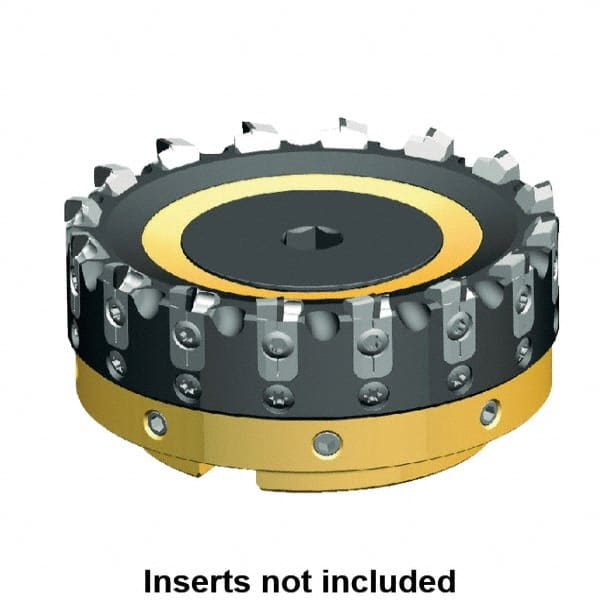

Kennametal - 12 Inserts, 100mm Cut Diam, 32mm Arbor Diam, 3mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, Series AluMill
Item #: 46870242
Brand: Kennametal
Model #: 2881352
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | AluMill |
| Maximum Depth of Cut (mm) | 3.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Cutter Style | KSCM |
| Number of Flutes | 12 |
| Hub Diameter (mm) | 95.50 |
| Hub Diameter (Decimal Inch) | 3.7598 |
| Maximum Body Diameter (Decimal Inch) | 3.8780 |
| Number of Adjustable Pockets | 12 |
| Maximum RPM | 23900 |
