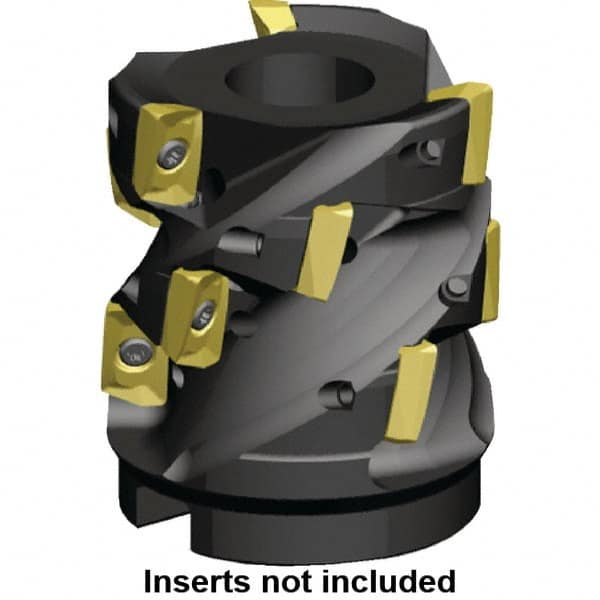

Kennametal - 20 Inserts, 40mm Cut Diam, 16mm Arbor Diam, 35.93mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, ED.T 10T3.. Insert Compatibility, Through Coolant, Series Mill 1-10
Item #: 46870473
Brand: Kennametal
Model #: 3773815
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | ED.T 10T3.. |
| Series | Mill 1-10 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 35.93 |
| Maximum Depth of Cut (Decimal Inch) | 1.4146 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| Cutter Style | Mill 1 |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 37.00 |
| Hub Diameter (Decimal Inch) | 1.4567 |
| Maximum Body Diameter (Decimal Inch) | 1.5180 |
| Maximum RPM | 26200 |
| Coolant Hole Diameter (Decimal Inch) | 0.0787 |
| Complete Insert Compatibility | ED.T 10T308 |
