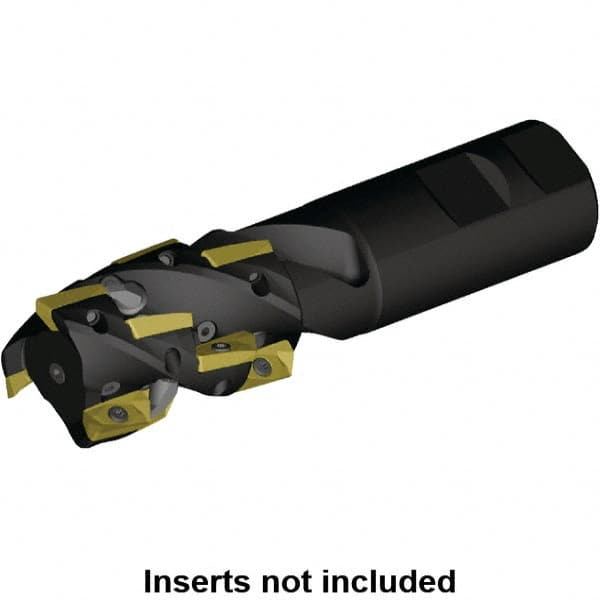

Kennametal - 40mm Cut Diam, 40.82mm Max Depth of Cut, 32mm Shank Diam, 141mm OAL, Indexable Square Shoulder Helical End Mill - E.. 14.. Inserts, Weldon Shank, 0° Lead Angle, Through Coolant, Series Mill 1-14
Item #: 46870499
Brand: Kennametal
Model #: 5085631
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Overall Length/Projection (mm) | 141.00 |
| Overall Length/Projection (Decimal Inch) | 5.5510 |
| Lead Angle | 0 |
| Series | Mill 1-14 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 40.82 |
| Maximum Depth of Cut (Decimal Inch) | 1.6070 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 4 |
| Head Length (mm) | 80.00 |
| Head Length (Decimal Inch) | 3.1496 |
| Weldon Flat | Yes |
| Insert Compatibility | E.. 14.. |
| Shank Length (Decimal Inch) | 2.4016 |
| Shank Length (mm) | 61.00 |
| Maximum RPM | 28400 |
| Coolant Hole Diameter (Decimal Inch) | 0.3150 |
