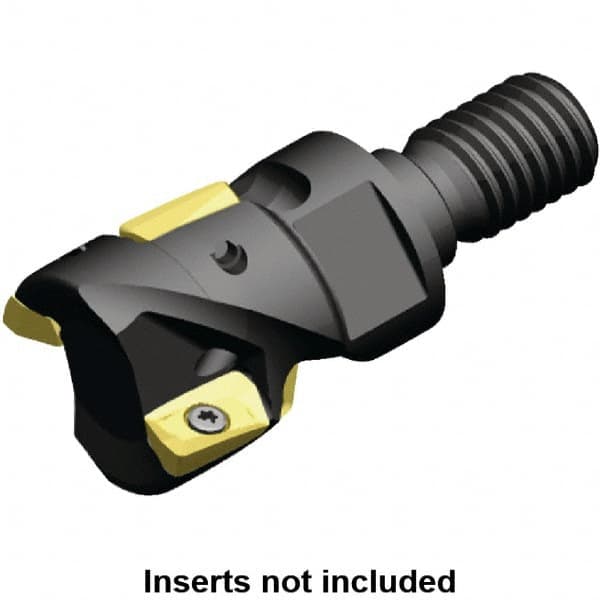

Kennametal - 20mm Cut Diam, 18.91mm Max Depth of Cut, 32mm OAL, Indexable Square Shoulder Helical End Mill - ED.T 10T3.. Inserts, M10 Modular Connection, 0° Lead Angle, Through Coolant, Series Mill 1-10
Item #: 46870523
Brand: Kennametal
Model #: 3773810
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Modular Connection |
| Modular Connection Size | M10 |
| Overall Length/Projection (mm) | 32.00 |
| Overall Length/Projection (Decimal Inch) | 1.2598 |
| Lead Angle | 0 |
| Series | Mill 1-10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 18.91 |
| Maximum Depth of Cut (Decimal Inch) | 0.7445 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 2 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Insert Compatibility | ED.T 10T3.. |
| Shank Length (Decimal Inch) | 0.7480 |
| Shank Length (mm) | 19.00 |
| Maximum RPM | 37100 |
| Coolant Hole Diameter (mm) | 3.60 |
| Coolant Hole Diameter (Decimal Inch) | 0.1417 |
