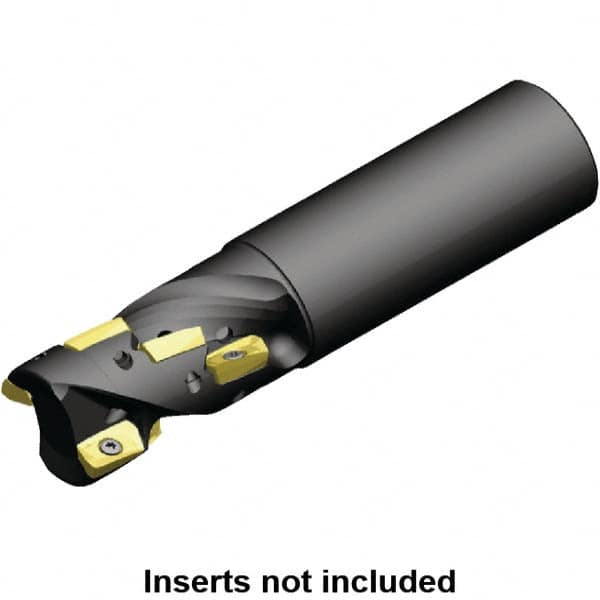

Kennametal - 32mm Cut Diam, 44.78mm Max Depth of Cut, 32mm Shank Diam, 115mm OAL, Indexable Square Shoulder Helical End Mill - ED.T 10T3.. Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series Mill 1-10
Item #: 46870564
Brand: Kennametal
Model #: 3773805
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 115.00 |
| Overall Length/Projection (Decimal Inch) | 4.5276 |
| Lead Angle | 0 |
| Series | Mill 1-10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 44.78 |
| Maximum Depth of Cut (Decimal Inch) | 1.7630 |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 3 |
| Head Length (mm) | 54.00 |
| Head Length (Decimal Inch) | 2.1260 |
| Weldon Flat | No |
| Insert Compatibility | ED.T 10T3.. |
| Shank Length (Decimal Inch) | 2.4016 |
| Shank Length (mm) | 61.00 |
| Maximum RPM | 29300 |
| Coolant Hole Diameter (mm) | 8.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.3150 |
