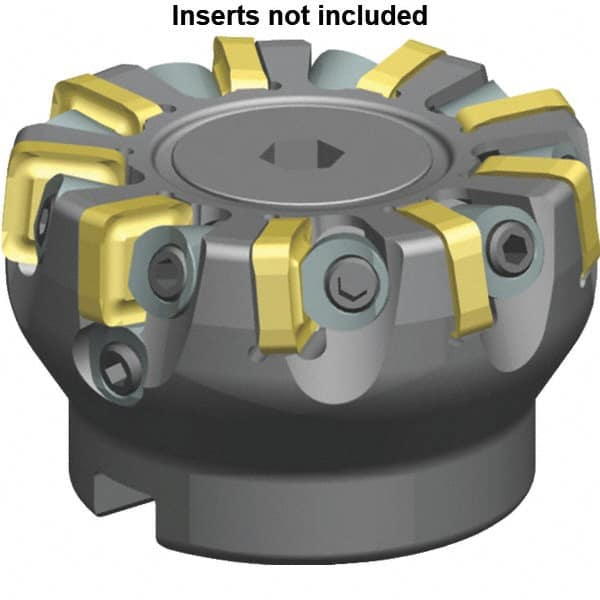

Kennametal - 162.1mm Cut Diam, 40mm Arbor Hole, 5mm Max Depth of Cut, 6° Indexable Chamfer & Angle Face Mill - 24 Inserts, SNXF 1204... Insert, Right Hand Cut, 24 Flutes, Through Coolant, Series KSSR
Item #: 46870853
Brand: Kennametal
Model #: 4004794
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 162.10 |
| Cutting Diameter (Decimal Inch) | 6.3819 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 6 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SNXF 1204... |
| Series | KSSR |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Wedge |
| Cutter Style | KSSR |
| Number of Flutes | 24 |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Hub Diameter (mm) | 90.00 |
| Maximum Body Diameter (Decimal Inch) | 6.2340 |
| Maximum RPM | 3000 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | SNXF 1204ZNENLD |
