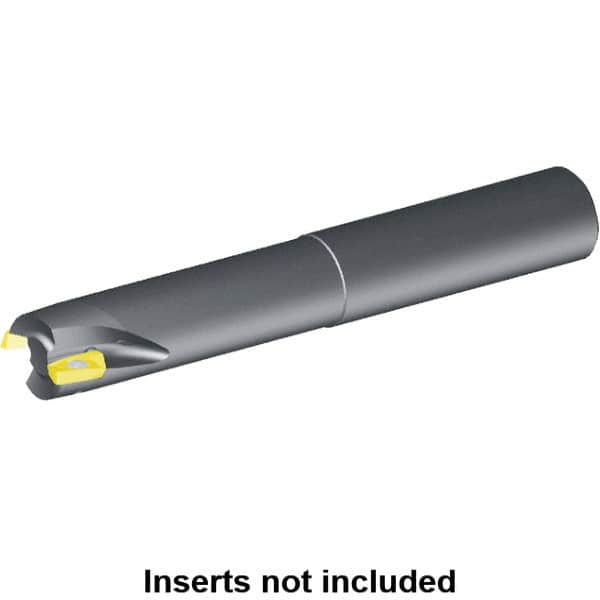

Kennametal - 40mm Cut Diam, 17.9mm Max Depth of Cut, 32mm Shank Diam, 250mm OAL, Indexable Square Shoulder Helical End Mill - EDCT 1805.. Inserts, Cylindrical Shank, Through Coolant, Series Mill 1-18
Item #: 46871117
Brand: Kennametal
Model #: 2963875
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 250.00 |
| Overall Length/Projection (Decimal Inch) | 9.8425 |
| Series | Mill 1-18 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 17.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.7047 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 3 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Weldon Flat | No |
| Insert Compatibility | EDCT 1805.. |
| Shank Length (Decimal Inch) | 7.8740 |
| Shank Length (mm) | 200.00 |
| Maximum RPM | 28220 |
| Coolant Hole Diameter (mm) | 6.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.2559 |
