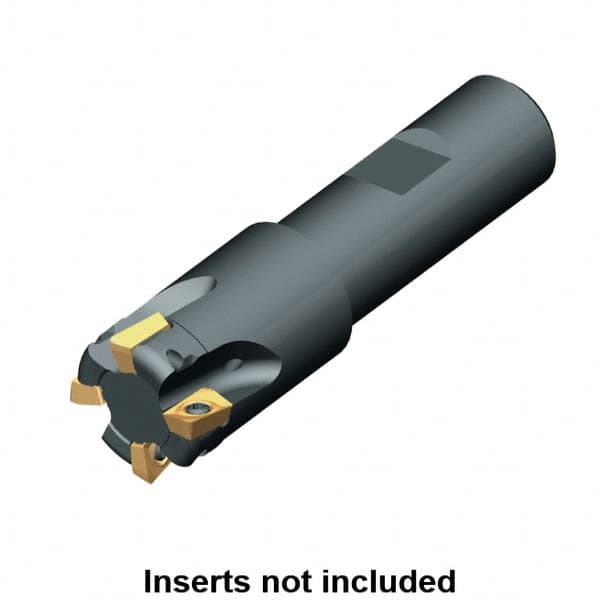

Kennametal - 32mm Cut Diam, 9.09mm Max Depth of Cut, 32mm Shank Diam, 100mm OAL, Indexable Square Shoulder End Mill - ADKT 1035.. Inserts, Weldon Shank, 0° Lead Angle, Series NGE-A
Item #: 46871208
Brand: Kennametal
Model #: 1024380
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 100.00 |
| Overall Length/Projection (Decimal Inch) | 3.9370 |
| Lead Angle | 0 |
| Series | NGE-A |
| Maximum Depth of Cut (mm) | 9.09 |
| Maximum Depth of Cut (Decimal Inch) | 0.3580 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 4 |
| Head Length (mm) | 39.00 |
| Weldon Flat | Yes |
| Insert Compatibility | ADKT 1035.. |
| Shank Length (Decimal Inch) | 2.4016 |
| Shank Length (mm) | 61.00 |
| Maximum RPM | 11400 |
