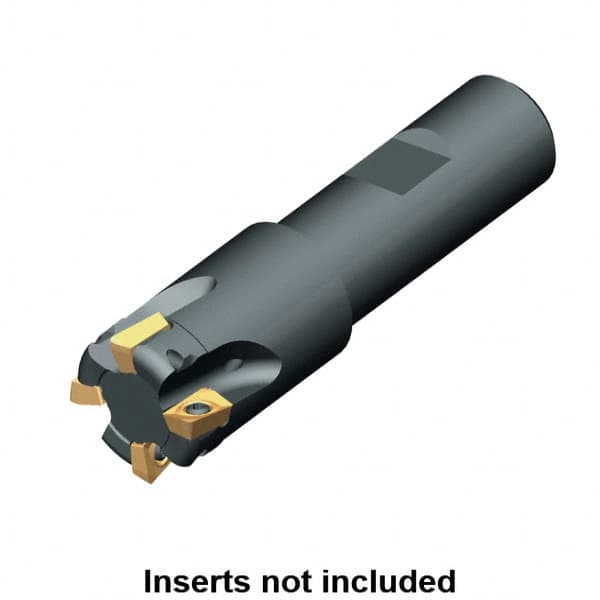

Kennametal - 14mm Cut Diam, 9.2mm Max Depth of Cut, 16mm Shank Diam, 75mm OAL, Indexable Square Shoulder End Mill - ADKT 1035.. Inserts, Weldon Shank, Series NGE-A
Item #: 46871257
Brand: Kennametal
Model #: 1024342
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 14.00 |
| Cutting Diameter (Decimal Inch) | 0.5512 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length/Projection (mm) | 75.00 |
| Overall Length/Projection (Decimal Inch) | 2.9528 |
| Series | NGE-A |
| Maximum Depth of Cut (mm) | 9.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.3622 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 1 |
| Head Length (mm) | 26.00 |
| Weldon Flat | Yes |
| Insert Compatibility | ADKT 1035.. |
| Shank Length (Decimal Inch) | 1.9291 |
| Shank Length (mm) | 49.00 |
| Maximum RPM | 17250 |
