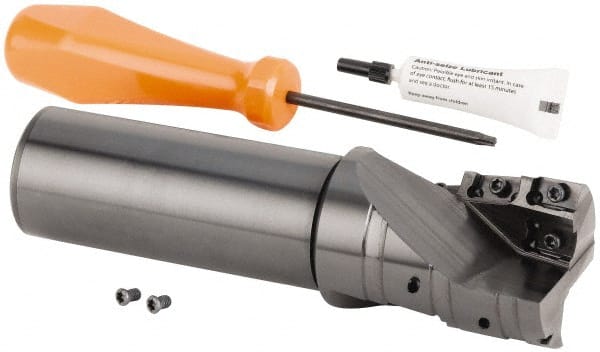

Kennametal - 40mm Cut Diam, 42mm Max Depth of Cut, 32mm Shank Diam, 160mm OAL, Indexable Square Shoulder Helical End Mill - GOMT 13T3.., JOMT 13T3.. Inserts, Cylindrical Shank, 0° Lead Angle, Series KDMR
Item #: 46884615
Brand: Kennametal
Model #: 3587077
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 160.00 |
| Overall Length/Projection (Decimal Inch) | 6.2992 |
| Lead Angle | 0 |
| Series | KDMR |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 42.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.6535 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | KDMR |
| Number of Flutes | 2 |
| Head Length (mm) | 55.00 |
| Head Length (Decimal Inch) | 2.1654 |
| Weldon Flat | No |
| Insert Compatibility | GOMT 13T3..; JOMT 13T3.. |
| Shank Length (Decimal Inch) | 4.1339 |
| Shank Length (mm) | 105.00 |
