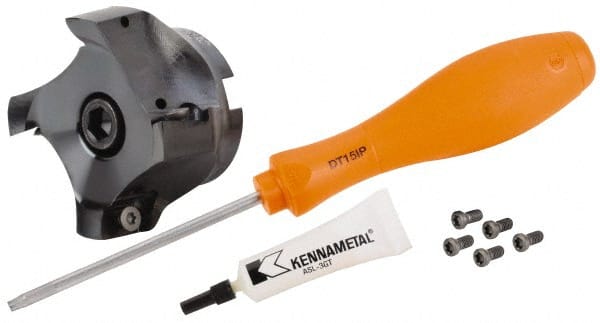

Kennametal - 4 Inserts, 3" Cut Diam, 1" Arbor Diam, 17.6mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-3/4" High, E.. 18.. Insert Compatibility, Through Coolant, Series Mill 1-18
Item #: 46884862
Brand: Kennametal
Model #: 5135356
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 76.20 |
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 44.45 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | E.. 18.. |
| Series | Mill 1-18 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 17.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.6930 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | Mill 1 |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 55.58 |
| Hub Diameter (Decimal Inch) | 2.1880 |
| Maximum Body Diameter (Decimal Inch) | 2.8810 |
| Coolant Hole Diameter (Decimal Inch) | 0.1180 |
