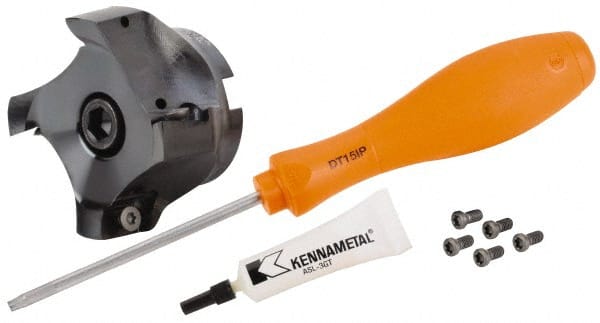

Kennametal - 4 Inserts, 2-1/2" Cut Diam, 3/4" Arbor Diam, 17.7mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, E.. 18.. Insert Compatibility, Through Coolant, Series Mill 1-18
Item #: 46884870
Brand: Kennametal
Model #: 5067567
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.50 |
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | E.. 18.. |
| Series | Mill 1-18 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 17.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6970 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | Mill 1 |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 44.45 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Maximum Body Diameter (Decimal Inch) | 2.3860 |
| Coolant Hole Diameter (Decimal Inch) | 0.1180 |
