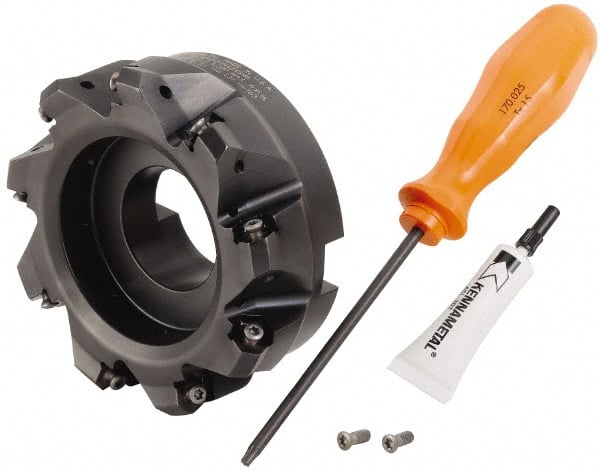

Kennametal - 4" Cut Diam, 1-1/2" Arbor Hole, 3.23mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 9 Inserts, HNGJ 0604... Insert, Right Hand Cut, 9 Flutes, Through Coolant, Series Dodeka Mini
Item #: 46886263
Brand: Kennametal
Model #: 4130498
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (mm) | 109.74 |
| Cutting Diameter (Decimal Inch) | 4.3206 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.7500 |
| Overall Height (mm) | 44.45 |
| Insert Compatibility | HNGJ 0604... |
| Series | Dodeka Mini |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 3.23 |
| Maximum Depth of Cut (Decimal Inch) | 0.1270 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | KSHR |
| Number of Flutes | 9 |
| Hub Diameter (Decimal Inch) | 3.6614 |
| Hub Diameter (mm) | 93.00 |
| Maximum Body Diameter (Decimal Inch) | 4.2280 |
| Maximum RPM | 6300 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNGJ 0604ANENLD |
