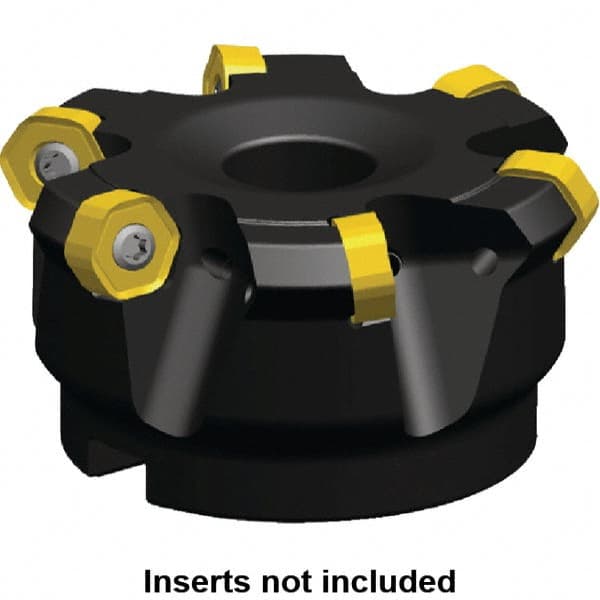

Kennametal - 131.16mm Cut Diam, 40mm Arbor Hole, 4.4mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 8 Inserts, HNGJ 0604... Insert, Right Hand Cut, 8 Flutes, Through Coolant, Series Dodeka Mini
Item #: 46886297
Brand: Kennametal
Model #: 4147722
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 131.16 |
| Cutting Diameter (Decimal Inch) | 5.1638 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | HNGJ 0604... |
| Series | Dodeka Mini |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 4.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.1732 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | KSHR |
| Number of Flutes | 8 |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Hub Diameter (mm) | 90.00 |
| Maximum Body Diameter (Decimal Inch) | 5.0620 |
| Maximum RPM | 5050 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNGJ 0604ANENLD |
