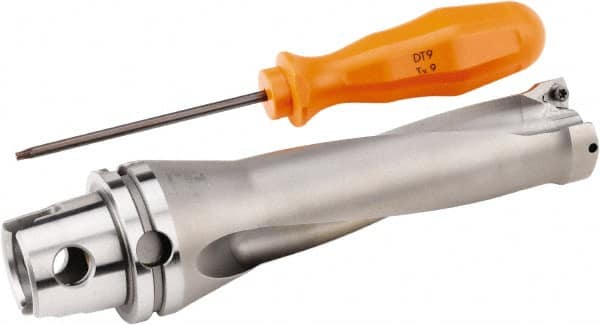

Kennametal - 81mm Max Drill Depth, 3xD, 1-1/16" Diam, Indexable Insert Drill - 2 Inserts, 1.5748" Shank Diam, KM40 Modular Connection Shank
Item #: 46886370
Brand: Kennametal
Model #: 4122655
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (Decimal Inch) | 1.0625 |
| Maximum Drill Depth (mm) | 81.00 |
| Maximum Drill Depth (Decimal Inch) | 3.1890 |
| Shank Type | Modular Connection |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Modular Connection Size | KM40 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.1417 |
| Maximum Drill Diameter (mm) | 29.00 |
| Overall Length/Projection (mm) | 126.00 |
| Overall Length/Projection (Decimal Inch) | 4.9606 |
| Insert Compatibility (Outside or Peripheral) | DFT 05T3.. |
| Insert Compatibility | DFT 05T3.. |
| Flute Length (mm) | 96.00 |
| Flute Length (Decimal Inch) | 3.7795 |
| Body Length (Decimal Inch) | 4.9606 |
| Body Length (mm) | 126.00 |
| Shank Length (mm) | 24.95 |
| Shank Length (Decimal Inch) | 0.9823 |
| Series | Drill-Fix |
