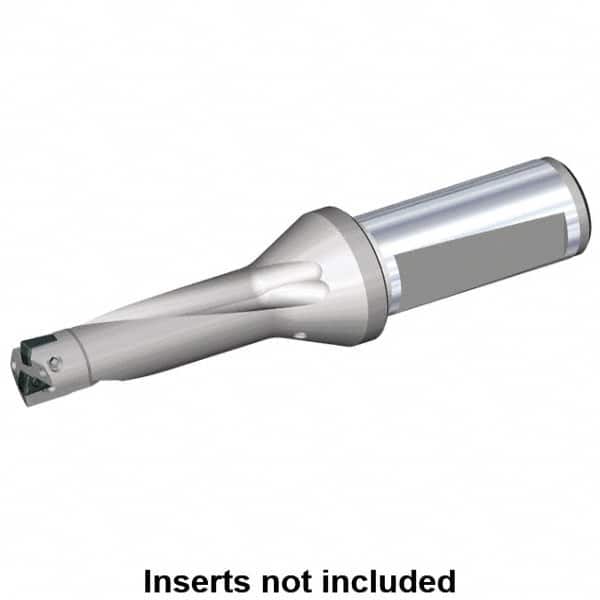

Kennametal - 61.5mm Max Drill Depth, 3xD, 20.5mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 46886545
Brand: Kennametal
Model #: 1810370
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFR |
| Drill Diameter (mm) | 20.50 |
| Drill Diameter (Decimal Inch) | 0.8071 |
| Maximum Drill Depth (mm) | 61.50 |
| Maximum Drill Depth (Decimal Inch) | 2.4213 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8465 |
| Maximum Drill Diameter (mm) | 21.50 |
| Overall Length/Projection (mm) | 152.05 |
| Overall Length/Projection (Decimal Inch) | 5.9863 |
| Insert Compatibility (Outside or Peripheral) | DFR 0403.. |
| Insert Compatibility | DFR 0403.. |
| Flute Length (mm) | 76.00 |
| Flute Length (Decimal Inch) | 2.9921 |
| Body Length (Decimal Inch) | 3.7029 |
| Body Length (mm) | 94.05 |
| Shank Length (mm) | 58.00 |
| Shank Length (Decimal Inch) | 2.2835 |
| Collar Diameter (mm) | 41.90 |
| Collar Diameter (Decimal Inch) | 1.6496 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | R1/4 |
